Feature:

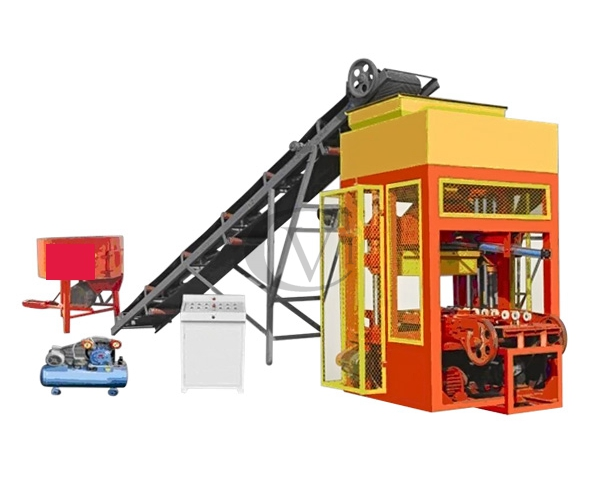

QJ-15 brick machine is a new type full auto brick making machine, it adopts the flate vibrating, mold vibrating and pressure vibrating to make the final product with evenly compactness and high strength. Unique fixed electric feeding equipment and strength feeding structure to ensure the quality of the brick. Its with effective production and reduce labor, also can save power above 20% comparing to traditional brick machine.
Application:
QJ-15 brick machine is a complete brick making line matched with the block making machine, mixer, mold, belt conveyer etc ,it’s especially used to make standard brick, and its strength much more higher than clay baked brick, if change the mold, it can make different standard brick, perforated brick, paving block etc. It’s with simple operation, reasonable structure, and easy maintenance.
Main data:
Model | QJ-3-15 block forming machine | ||
Production Capacity | Hollow brick (390x70x190mm) |
6pcs/mould |
9000pcs/8h |
Hollow brick (390x90x190mm) |
6pcs/mould |
9000pcs/8h | |
Hollow brick (390x140x190mm) |
4pcs/mould |
6000pcs/8h | |
S paving blocks | 12pcs/mould | 18000pcs/8h | |
Cycle time | 10-15s | ||
Main power | 35kw | ||
Dimensions | 3000x3600x2300mm | ||
Supporting plate size | 750x530x30mm | ||
Vibration frequency | 4600rpm | ||
Weight | 4500kg |
