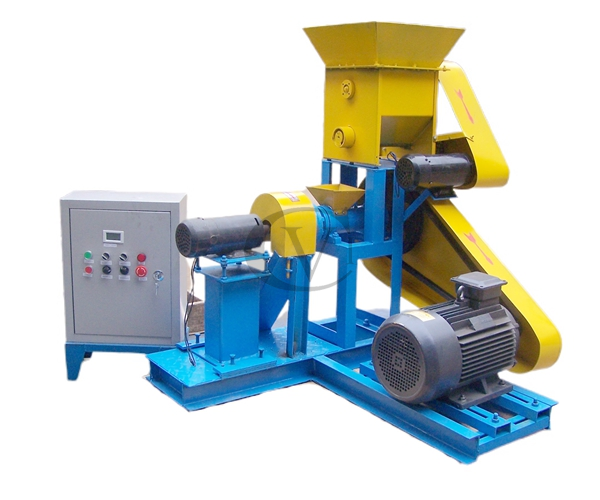

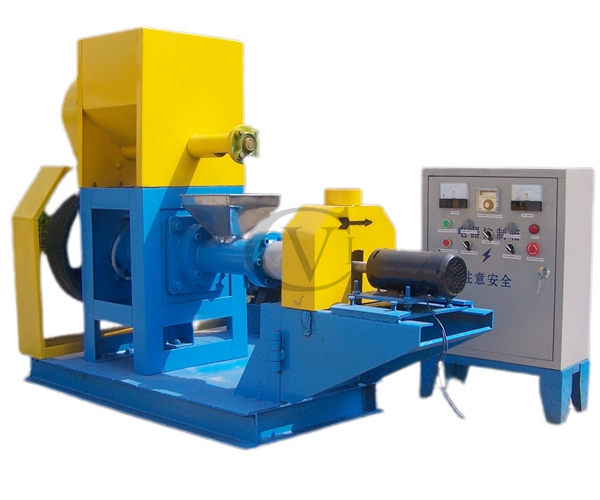

DGP Floating Fish Extruder
DGP Floating Fish Extruder
  • Application:

    This floating fish extruder can process raw materials such as wheat, soybean, cake and other leftovers etc. The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.

    Features:

    (1) The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.

    (2) The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it’s with wear-resisting and long life.

    (3) Inside machine have special pressure mold equipment to ensure the feedstuff capacity and quality, also matched with electric heating elements to increase feedstuff extruding rate.

    (4) This machine is taken the automatic feeding system, can control the feeding speed and save labor.

    (5) The floating pellets will float on the water at least 12hours without spreading. The pellets are no pollution and easy for working members to observe. The materials are health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

Enquiry Now
  • Main data:


    Model

    Capacity (t/h)

    Main power(kw)

    Feed power(kw)

     Screw diameter(mm)

    Cut power (Kw)

    Weight

    (kg)

    DGP40-C

    0.03-0.04

    5.5

    0.4

    Φ40

    0.4

    220

    DGP50-C

    0.06-0.08

    11

    0.4

    Φ50

    0.4

    240

    DGP60-C

    0.12-0.15

    15

    0.4

    φ60

    0.4

    320

    DGP70-B

    0.18-0.2

    18.5

    0.4

    φ70

    0.4

    350

    DGP80-B

    0.2-0.25

    22

    0.4

    φ80

    0.6

    580

    DGP90-B

    0.32-0.35

    37

    0.6

    φ90

    0.8

    695

    DGP120-B

    0.5-0.6

    55

    1.1

    φ120

    2.2

    950

    DGP135-B

    0.7-0.8

    75

    1.1

    φ133

    2.2

    1700

    DGP160-B

    1-1.2

    90

    1.5

    φ155

    2.2

    3200

    DGP200-B

    1.8-2.0

    132

    1.5

    φ195

    3.0

    3800
