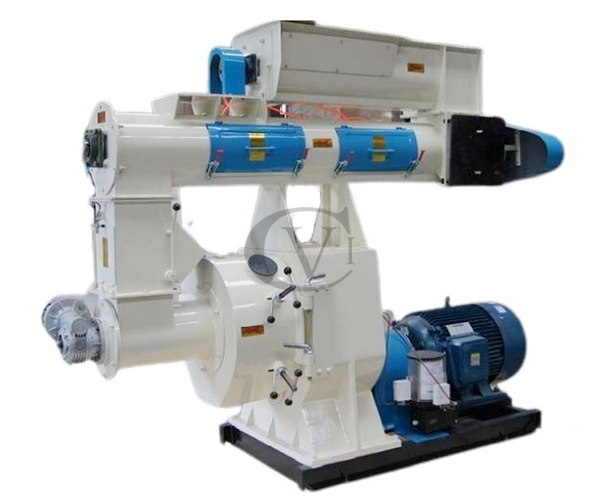

SZLH Pellet Machine
SZLH Pellet Machine
  • Introduction:

    (1) It has wide applicable scope, can make wood pellets from sawdust, crop stalks, rice husk, corn stalk, dry grass, peanut shell, coconut shell and so on, it is also very good for making all kinds of feed pellets from all kinds of grains;

    (2) It can be equipped with Automatic Adjustment System which can control the conditioner to stable work;

    (3) Main transmission is high-definition gear driving, ring die is easy to discharged, be fixed by hope, with advanced reliable load overload protection;

    (4) The bearing and oil seal in the main driven are imported and especially lubrication oil return system is available to ensure reliable bearing lubrication;

    (5) The feeding parts adopt electromagnetic adjustable speed motor or frequency conversion adjustable speed motor. It can make the motor work under best condition;

    (6) Advanced reliable overload protection devices and caution marks are completed.

Enquiry Now
  •  Main data and price:


    Model

    SZLH350

    SZLH420

    SZLH508

    Capacity(t/h)

    2-3

    3-5

    4-6



    Machine power (KW)

    55

    110

    132

    Force feeder power (KW)

    2.2

    5.5

    7.5

    Modulator power (KW)

    0.75

    1.5

    1.7

    Die diameter (mm)

    350

    420

    508

    Size(mm)

    1800x1000x1850

    2300x1300x2500

    2500x1500x2650
