Application
The JM series colloid mill is milling machinery for liquid or colloid object. The structure of this machines is originating in domestic by our factory, it is with advanced design, reliable characteristics, the machine have the function of super thin comminuting, emulsification, homogenization, and mix-Up to granularity 2-50micron.
Main feature
a. Main body are stainless steel

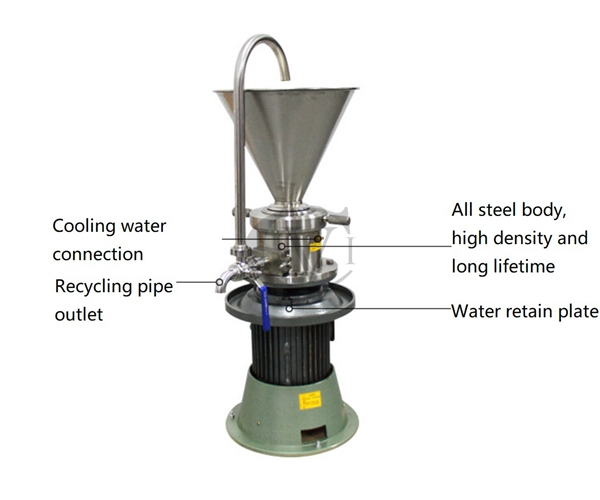

b. Reliable tiny adjustment, equipped with dial, heating and cooling system, easy to control.
c. Adopts non-touch bush pressurize, leak proof, trouble free, water proof plate to protect the motor.
Main data
Model | JM-50 | JM-60 | JM-80 | JM-120 |
Fineness of processed material(um) | 10-50 | 10-50 | 10-50 | 2-50 |
Capacity(ton/h) | 0.01-0.05 | 0.05-0.5 | 0.2-1.5 | 0.5-2 |
Motor power(kw) | 0.55 | 1.5 | 4 | 7.5 |
Motor speed(rpm) | 2800 | 2800 | 2800 | 2800 |
Size(mm) | 220×220×530 | 280×280×700 | 350×350×840 | 400×400×1080 |
Weight(kgs) | 19 | 45 | 95 | 150 |
