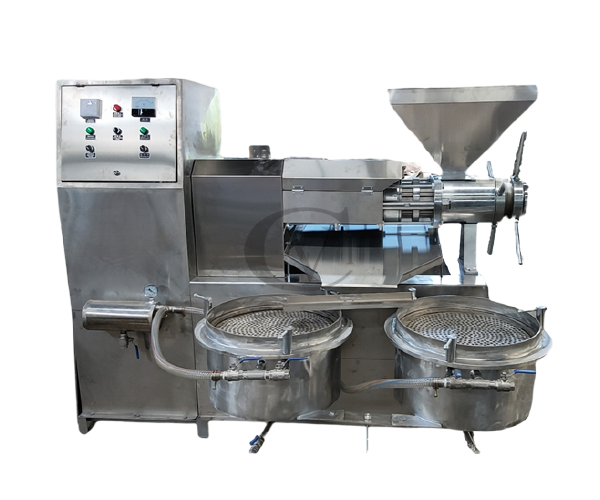

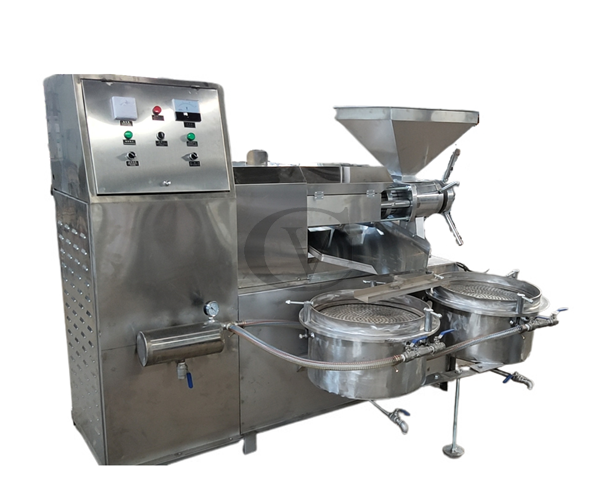

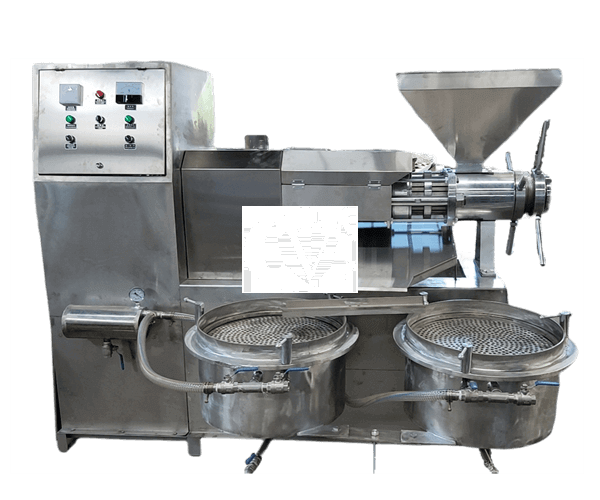

6YL-S Stainless Oil Press
6YL-S Stainless Oil Press
  • Application:
    It is widely used to press rapeseeds, cottonseeds, soybean, peanut, sesame, tea-seeds, sunflower-seeds, palm kernel etc, it's a perfect product for small-medium oil factory.

    Advantage of 304 stainless steel oil press machine:

    1. Integrated with oil pressing and oil filtering with automatic.

    2. It can auto control the raw materials pressing temperature

    3. Choose vacuum filter which is more efficient in filtering crude oil

    4. There’s heating pipe on the pressing chamber, this can help the pressing chamber rise to fixed temperature in short time.

    5. The main parts are by heat treatment with very compact structure and strong wear resistance.

    6. This machine is made of food grade 304 stainless steel which is more healthy.

Enquiry Now
  •   Main data:




    Model

    6YL-80S

    6YL-100S

    6YL-120S

    Processing capacity

    120-150kg/h

    200-250kg/h

    300-350kg/h

    Pressing screw dia

    Φ80mm

    Φ100mm

    Φ120mm

    Pressing screw speed

    60r/min

    40r/min

    36r/min

    Round ring dia

    Φ82mm

    Φ102mm

    Φ122mm

    Power

    Main power

    Y112M-6 5.5KW

    Y132M-6 7.5KW

    Y160M-6 11KW

    Heating

    3KW

    3.5KW

    4KW

    Weight

    780kg

    980kg

    1500kg

    Size

    1680x1300x1550mm

    1950x1350x1610mm

    2050x1550x1800mm

    Weight

    780kg

    980kg

    1500kg
