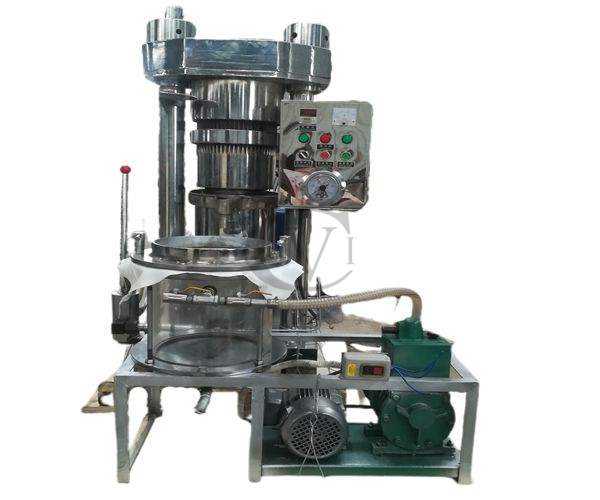

6Y-I Hydraulic Oil Press with Vacuum Filter
6Y-I Hydraulic Oil Press with Vacuum Filter
  • Application:

    1.The 6Y-system hydraulic oil press has been launched after improved by introduced Korean technology and won high praise from users.

    2.With lower power consumption and noise, it can be fed with 5-20kg of material every time and completely squeeze in 4-8min.

    3. It can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.

    4. It matched with vacuum filter, so the final oil is more pure and good color.

Enquiry Now
  • Technical data:

    Model

    6Y-180-I

    6Y-230-I

    6Y-280-I

    6Y-320-I

    Process capacity

    15-30kg/h

    40-60kg/h

    90-100kg/h

    120-130kg/h

    Power

    1.5kw(380v/50hz)

    1.5kw(380v/50hz)

    2.2kw(380v/50hz)

    4.0kw

    Heating collar power

    1kw

    1kw

    2kw

    3kw

    Heating collar temperature

    70-100

    70-100

    70-100

    70-100

    Nominal pressure

    1600KN

    2200KN

    3000KN

    3000KN

    Max pressure in working

    55MPA

    55MPA

    55MPA

    55MPA

    Overall size

    800x600x1100mm

    900x750x1400mm

    900x850x1500mm

    900x1000x1650

    Weight

    530kg

    880kgs

    1220kg

    2000kgs
