Double Head Liquid Filling Machine
Double Head Liquid Filling Machine
  • Application:

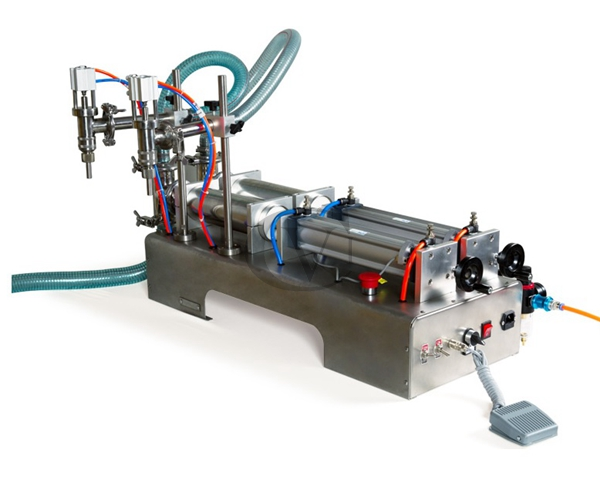

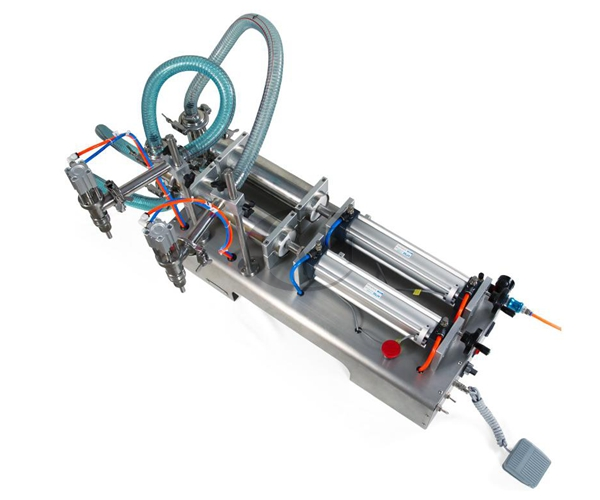

    1.Horizontal type double heads liquid filling machine can be applied to fill liquid in food, bath items, medicine, chemical etc; it’s not suitable to fill the liquid with gas and drinking materials with pellet.

    2. The whole machine is stainless steel; the contact materials part chooses 316L stainless steel and in accordance with health standard.

    3.Pneumatic parts choose Taiwan AirTAC brand to make sure the machine work steady.

    Foot switch inching operation, auto working and two kinds of control mode are more practical and convenient.

    4.The filling heads can be changed according to different diameter bottleneck.

Enquiry Now
  • Technical data:


    Model

    VIC-L2 Liquid filling machine

    Filling head

    2

    Filling speed

    10-40bottle/minute

    Filling precision

    <±0.5%

    Filling scope

    10-100ml,30-300ml,50-500ml,100-1000ml,250-2500ml,500-5000ml

    Pressure

    0.4-0.9Mpa

    Power

    50w

    Gas volume

    0.1M3/Min

    Size

    1200mm×300mm×400mm

    Weight

    60kgs
