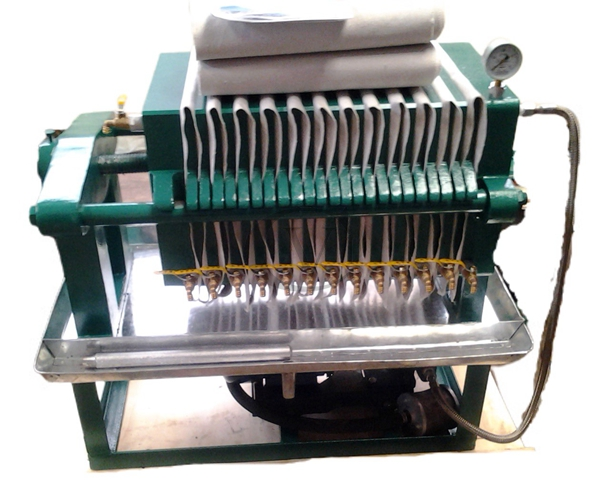

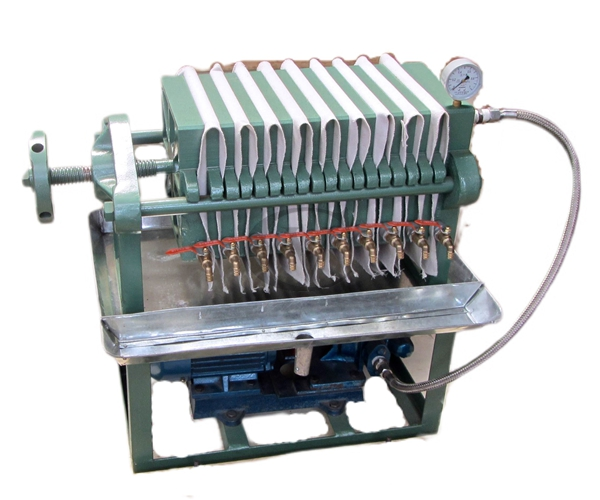

6LB Oil Filter
6LB Oil Filter
  • Application:

    6LB series oil filter is mainly used for filtering the crude oil pressed out by oil press.

    Such oil filter can be matched with oil press to filter impurities from oil, also can be used to filter the waste oil, waste water and bio-diesel etc.

Enquiry Now
  • Technical data:


    Model

    6LB-200 oil filter

    6LB-250 oil filter

    6LB-350 oil filter

    Power

    0.55kw

    0.75kw

    1.1kw

    Plate No.

    9 pcs

    13 pcs

    25 pcs

    Filter plate size

    200x200mm

    250x250mm

    350x350mm

    Capacity

    30-50kg/h

    50-100kg/h

    200kg/h

    Working pressure

    0.3-0.4Mpa

    Machine size

    550x440x640mm

    780x530x670mm

    1300x750x700mm

    Machine weight

    100kgs

    200kgs

    350kgs
