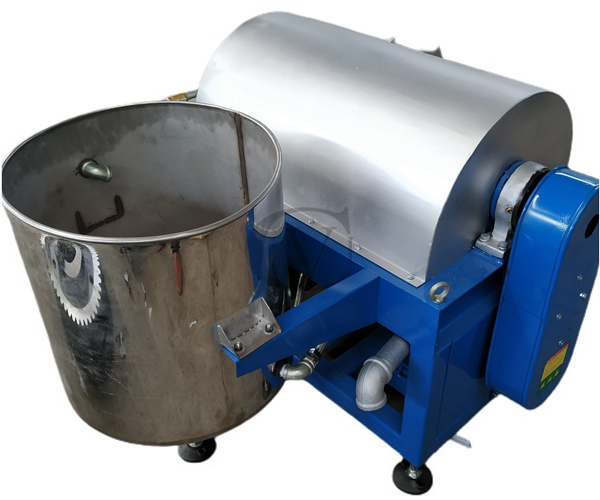

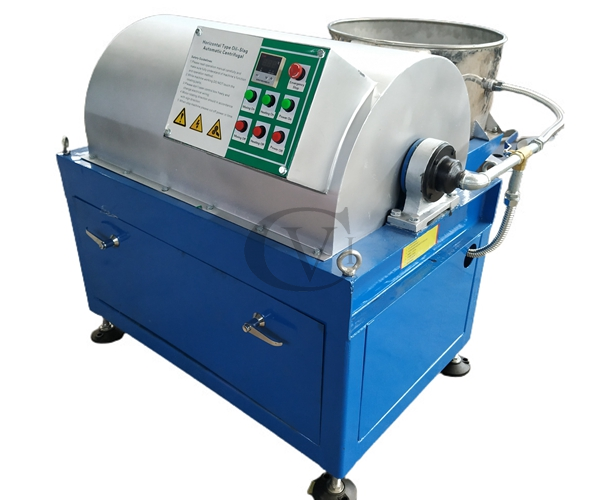

DC-150 Centrifugal Filter
DC-150 Centrifugal Filter
  • Main feature:

    1. Continuous working, no filter cloth and filter sieve, so never need to change filtering medium while working.

    2. High efficiency, every hour can process around 1Ton rapeseeds crude oil if oil impurities not too much.

    3. Easy operation, oil and slag automatically being separated so no need labor working.

    4. The final oil is clear and pure, oil slag is formed and dried.

Enquiry Now
  • Main data:


    Model

    DC-150 decanter centrifugal

    Processing capacity

    300-400kg/h

    Drum appearance

    conical column

    Drum diameter x length

    150mmx500mm

    Rated flow

    2m3/h

    Inlet-outlet dia

    800mm

    Drum max speed

    4180 rpm

    Separation factor

    1465

    Drum draw ratio

    3.7L/D

    Power

    3kw

    Size

    990x1082x998mm

    Weight

    260kg
