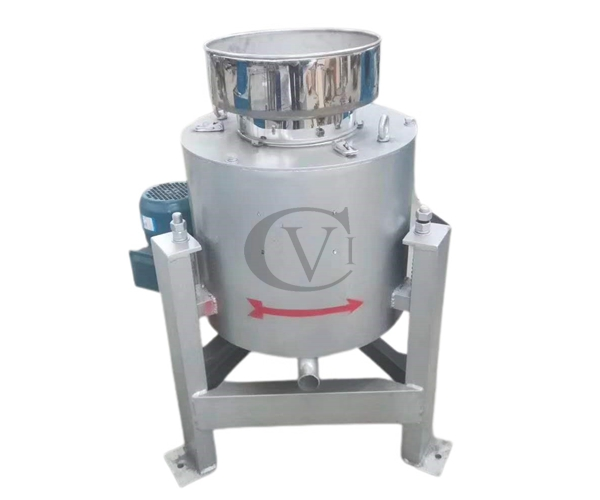

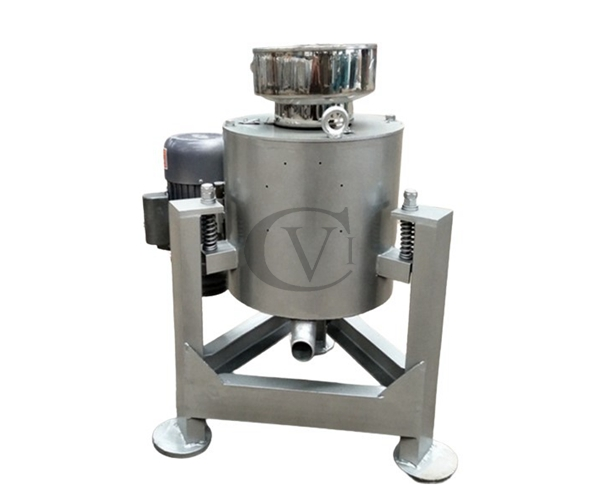

CL Centrifugal Filter
CL Centrifugal Filter
  • Feature:

    1.This centrifugal filter is by the centrifugal force from the high-speed rotating drum, gravity to separate the oil and slag to realize liquid-solid separation.

    2. Once the drum stop rotating, clean oil will come out from the drum to realize filtering.

    3.Comparing to other filters, this centrifugal filter no need any other extra spare parts, and no more consumption of filter cloth or cloth cleaning.

    4.The final oil is clean, no foam and no overflowing pot.

Enquiry Now
  • Main data:

    Model

    CL-40

    CL-50

    CL-60

    CL-80

    Power

    1.5kw

    1.5kw

    1.5kw

    3.0kw

    Rotated speed

    1800rpm

    1800rpm

    1800rpm

    1800rpm

    Processing capacity

    80kg/h

    200kg/h

    260kg/h

    350kg/h

    Diameter

    360mm

    500mm

    550mm

    600mm

    Size(mm)

    500*500*600

    850*800*900

    900*900*900

    950*950*1000

    Weight

    120kgs

    130kgs

    150kgs

    220kgs
