High-Efficiency Filtration and Clarity
The pneumatic filter utilizes high-pressure gas to assist in the rapid filtration of solid suspensions, sludge, and other impurities from oils. The filtered oil achieves a high level of clarity with no sediment, making it suitable for applications with stringent oil quality requirements.
User-Friendly Operation and Easy Maintenance
The design is user-centric, ensuring ease of operation and maintenance. With a high degree of automation, the system allows for a certain level of automated control.
Compact Structure and Strong Adaptability
The pneumatic filter features a relatively small and compact structure, occupying minimal space, which makes it ideal for use in confined working environments. The equipment is suitable for filtering edible oils such as vegetable oils and high-end oil materials.
Cost-Effective and Practical
The pneumatic filter operates with low energy consumption. Its high filtration efficiency helps reduce oil waste and loss, making it an economical choice.
Instruction

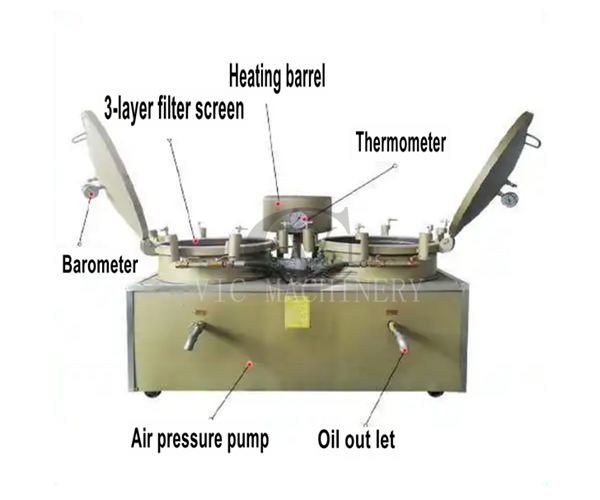

The air pressure oil filter operates using positive pressure, offering features such as easy slag removal, no need for oil storage, high working efficiency, and the ability to produce clear, high-quality grease. It is primarily designed to filter various types of crude oils extracted by screw oil presses, as well as other oils containing solid impurities.
Main data about the oil filter machine
|
Model |
Air
pressure oil filter |
|
Processing
capacity |
80-120kg/h |
|
Working
pressure |
0.1-0.5mpa |
|
Power |
2.2kw
380v |
|
Filter
area |
0.4㎡ |
|
Size |
1400x800x900mm |
|
Weight
|
200kgs |
