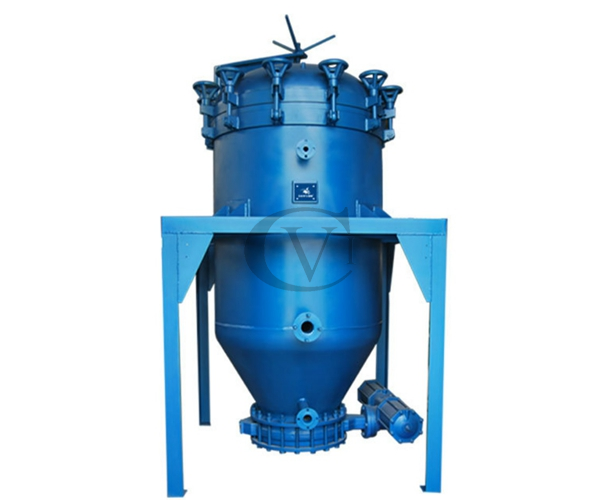

Leaf Filter
Leaf Filter
  • Main feature:

    1.Choose stainless filter sieve no need filter paper or filter cloth which can reduce filtering cost very much

    2.Full sealed operation no loss to raw materials and no pollutions to workshop

    3.Vibrating discharge functions which can reduce labors work very much and realize continuous work

    4.It’s a very good solution in filtering cottonseeds oil, rapeseeds oil, castor seeds oil etc hard filtering and hard discharge problem.

Enquiry Now
  • Main data:

    Model

    GLB-4

    GLB-8

    GLB-10

    GLB-15

    Filtering area

    4 m2

    8m2

    10 m2

    15 m2

    Barrel diameter

    550mm

    700mm

    800mm

    900mm

    Process capacity

    0.5-1.2T/H

    2-3T/H

    3-5T/H

    5-7T/H

    Rated pressure

    0.1-0.4Mpa

    0.1-0.4Mpa

    0.1-0.4Mpa

    0.1-0.4Mpa

    Max pressure

    0.5Mpa

    0.5Mpa

    0.5Mpa

    0.5Mpa

    Working temperature

    ≤150

    ≤150

    ≤150

    ≤150

    Filter plate distance

    70mm

    70mm

    70mm

    70mm

    Weight

    600kgs

    800kgs

    900kgs

    1100kgs
