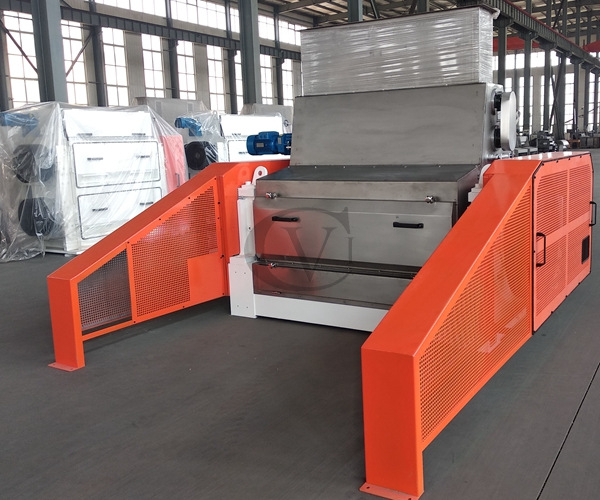

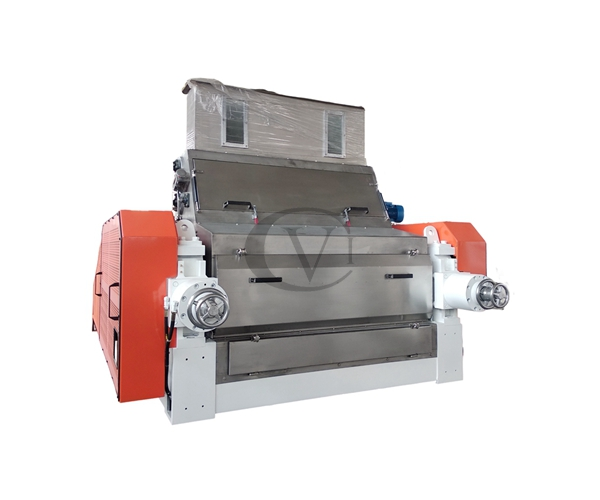

YYPY Flaking Mill
YYPY Flaking Mill
  •

    1. The roll control adopts square bearing housing, which makes the operation more stable and reliable, and makes the noise lower;

    2. The design structure is unique, it is convenient to directly adjust the thickness of the flakes, and it has a reliable anti-collision function for the rollers;

    3. Composite feeding with equalizing roller and toothed roller can be used to ensure more uniform feeding, and the feeding amount can be controlled by frequency conversion;

    4. Centrifugal cast high-alloy rolls are adopted, and the through-shaft assembly process has strong rigidity. The heat-conducting oil can be filled in the roll body, and the work stability is good;

    5. The electric pump of the hydraulic system adopts intermittent automatic operation, the pressure is constant and reliable, and the energy saving effect is obvious;

    6. Humanized design, strong operability, more stable rolling blanks and longer service life;

    7. Electrically realize PLC automatic control.

    8. The whole machine has compact structure, reduced height, increased strength, good stability, low noise, convenient operation, and low failure rate, so the users use it without any worries.

Enquiry Now
  • Main data:



    Model

    YYPY2x60x80

    YYPY2x60x100

    YYPY2x80x100

    YYPY2x80x125

    Capacity(T/D)

    50-60T

    80-100T

    120-150T

    180-200T

    Flakes thickness(mm)

    0.25~0.35

    0.25~0.35

    0.25~0.35

    0.25~0.35

    Power(kw)

    18.5x2+0.25+1.1

    22x2+0.55+2.2

    30x2+0.55+2.2

    37x2+0.55+2.2

    Size(m)

    1.8x1.3x2.0

    1.91x1.67x1.83

    2.25x2.23x2.1

    2.5x2.23x2.1

    Weight (Ton)

    4T

    6T

    10T

    13T



    Model

    YYPY2x80x150

    YYPY2x81x220

    Capacity(T/D)

    280-320T

    450-500T

    Flakes thickness(mm)

    0.25~0.35

    0.25~0.35

    Power(kw)

    55x2+0.75+2.2

    160+1.1+1.1+3.0

    Size(m)

    2.76x2.23x2.15

    3.58x2.42x2.36

    Weight (Ton)

    14T

    25T
