Application:

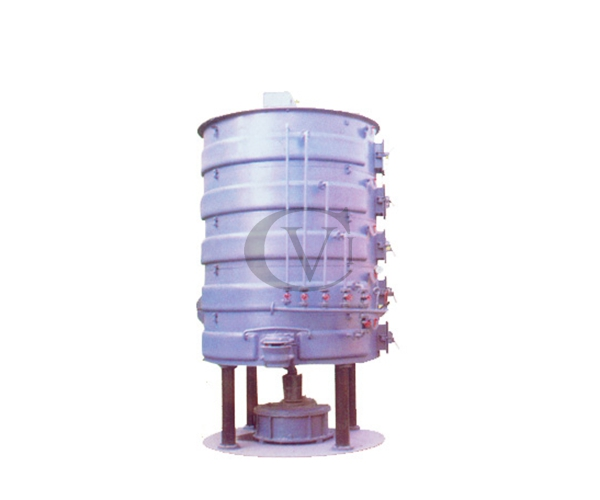

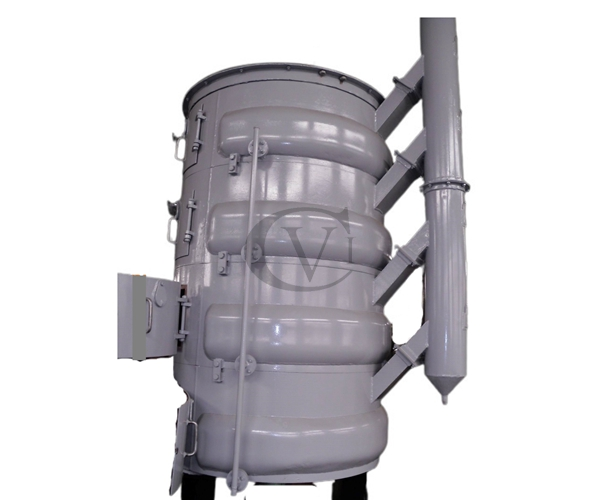

Steam cooker is one of
the main equipment of oil processing, its mainly used to fry, wet, soften and
heating the raw oil materials into cooked flakes for better oil output and oil
quality.
Main data:
|
Model |
120×3 |
150×3 |
150×5 |
180×5 |
210x5 |
240x5 |
|
Capacity (t/d) |
10-15 |
15-30 |
20-40 |
30-60 |
60-80 |
90-120 |
|
Power(kw) |
5.5 |
11 |
18.5 |
22 |
30 |
37 |
|
Main shaft speed(r/min) |
30-32 |
30-32 |
30-32 |
30-32 |
30-32 |
30-32 |
|
Working pressure |
0.54Mpa |
0.54Mpa |
0.54Mpa |
0.54Mpa |
0.54Mpa |
0.54Mpa |
|
Diameter(cm) |
120 |
150 |
150 |
180 |
210 |
240 |
|
Weight(kg) |
2300 |
4500 |
5850 |
7000 |
9400 |
12000 |
