Introduction:

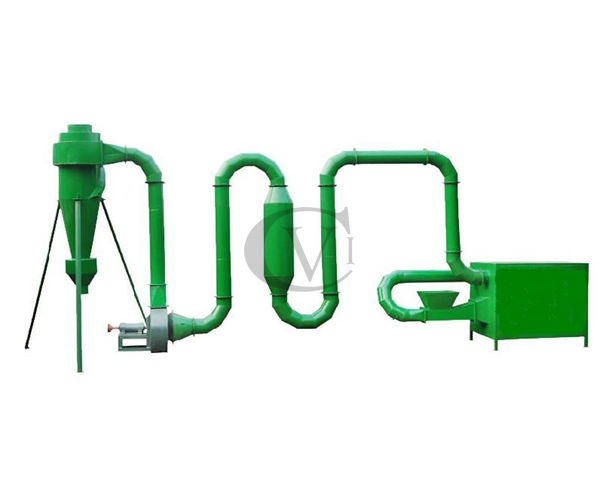

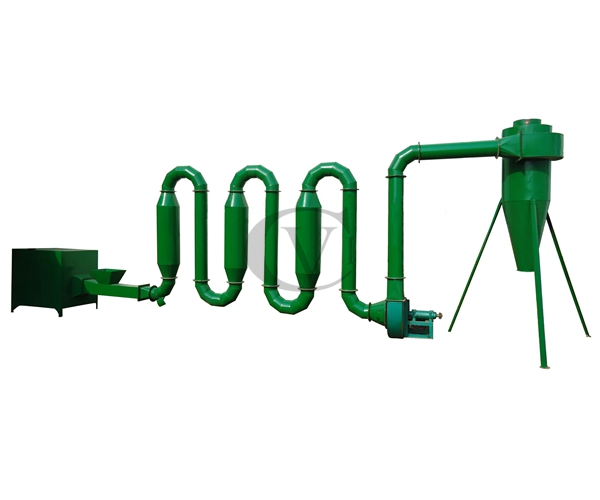

HGJ pipe dryer is special suitable for drying heat sensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on.
The HGJ SERIES dryer has the feature of low cost and high efficient. It can reduce moisture from 40-45% to 8-12%.
Working principle: In the dryer, high-speed hot air stream sustains raw material in the suspending state, then the material is dried. Since air stream speed is very high, and materials suspending in air stream, the heat transfer surface between air and raw material is large, so the heat transfer rate is high.
Fuel for the furnace: wood waste, coal, waste oil and so on.
Main data and price:
Model | HGJ-I | HGJ-II | HGJ-III |
Capacity-kg/h | 200-300 | 300-600 | 800-1000 |
Diameter of raw-mm | < 3mm & < 5mm | < 3mm & < 5mm | < 3mm & < 5mm |
Air temperature-°C | 180°C~250°C | 180°C~250°C | 180°C~250°C |
Centrifugal power-Airlock power-KW | 4(380v/3p) | 5.5(380v/3p)) | 7.5(380v/3p) |
Material in feed | 20mm | 20mm | 20mm |
Consumption-kg/h | 10kg/h | 20kg/h | 25-30kg/h |
Moisture-max-°C | 35-45 | 35-45 | 35-45 |
Dried-max-°C | 8-12 | 8-12 | 3-10 |
Dimension(m) | 6000*850*2200 | 8000*850*2500 | 50*0.95*2.7 |
Weight/kg | 1100 | 1300 | 1600 |
