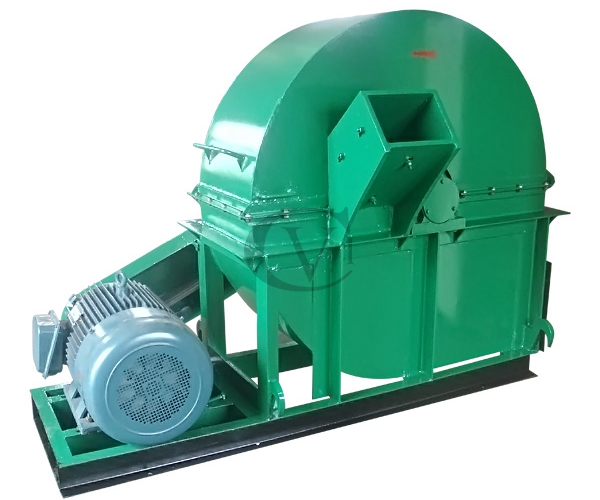

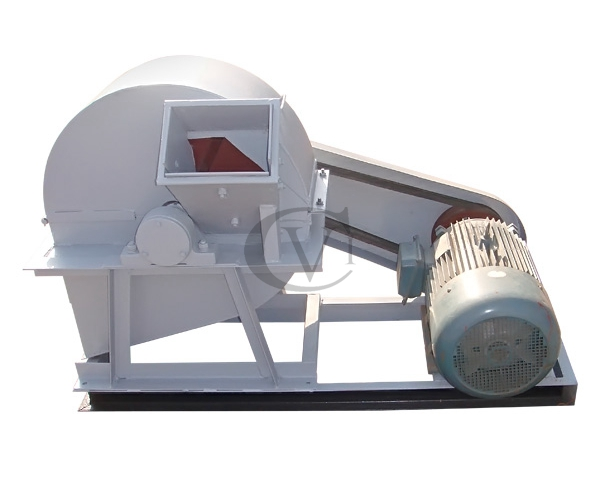

9FH Wood Crusher
9FH Wood Crusher
  • Introduction:

    1.This wood crush can crush the big diameter tree branch such as pine, poplar wood, filed mushroom, fresh wood, wood branch, wood chip, all kinds of straws into pieces like sawdust one time. It is also good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.

    2.Adopt belt transmit, blade cutting and hammer crushing together, which can crush raw material into sawdust directly, the granularity size can be adjusted by changing the sieve.

    3.It is not only be driven by motor, but also can be diesel engine.

Enquiry Now
  • Main data:

    Model

    9FH-420

    9FH-500

    9FH-600

    9FH-1000

    Motor

    11 KW

    18.5kw

    22kw

    75kw

    Voltage

    380v

    380v

    380v

    380v

    Capacity(kg/h)

    500-700

    700-800

    800-1000

    1000-2000

    Blade quantity

    4pcs

    4pcs

    4pcs

    8pcs

    Cutter diameter

    420 mm

    500mm

    610mm

    750mm

    Size of feeding inlet(mm)

    140×100

    170x140

    190x150

    270x250

    Outer dimension(m)

    1.2x0.5x0.7

    1.4x0.65x0.9

    1.55x0.63x0.9

    2x1.87x1.5

    Weight(kg)

    250

    400

    500

    1000
