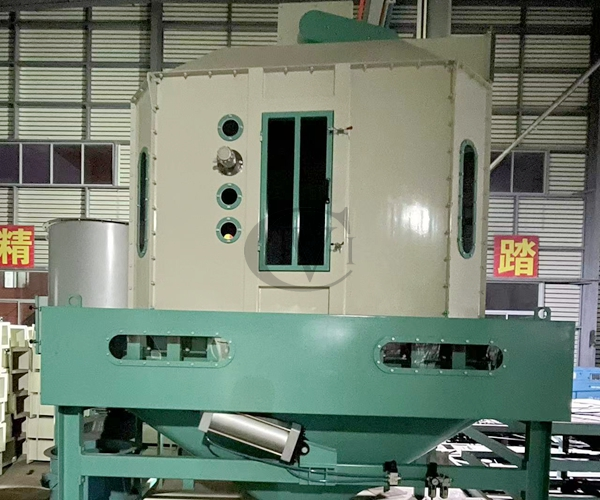

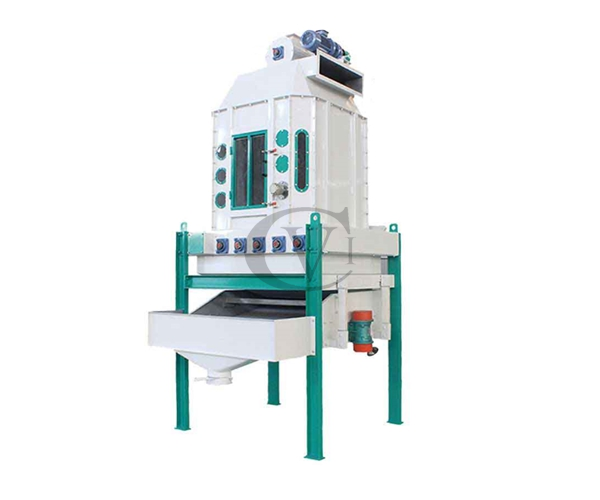

SKLN Pellet Cooling Machine
SKLN Pellet Cooling Machine

  • Characteristics of Counterflow Cooler

    1.The cooling effect is good; the cooling temperature is not higher than that room temperature by 3 - 5 DEG C, and can be reduce to safe moisture, thereby facilitating the transportation and storage of the granular materials;
    2. Low energy consumption, stable operation. Compared with the old cooler, the energy consumption is saved by 15%, and the operation is stable;

    3.The pellet cooler has simple structure, reliable use and convenient subsequent installation and maintenance;

    4.Optional automatic and manual level control, facilitate the production continuity.

Enquiry Now

  • Instruction

    Pellet Cooling Machine is a key link in wood and animal feed processing technology, which has a significant impact on pellet effect and pellet quality.  Counterflow cooler is a popular cooling equipment, using cooling air flow and material flow phase reverse principle, to achieve cooling effect.


    Characteristics of Counterflow Cooler

    1.The cooling effect is good; the cooling temperature is not higher than that room temperature by 3 - 5 DEG C, and can be reduce to safe moisture, thereby facilitating the transportation and storage of the granular materials;
    2. Low energy consumption, stable operation. Compared with the old cooler, the energy consumption is saved by 15%, and the operation is stable;

    3.The pellet cooler has simple structure, reliable use and convenient subsequent installation and maintenance;

    4.Optional automatic and manual level control, facilitate the production continuity.


    Main data about the pellet cooling machine:

    Model

    SKLB2.5

    SKLB4

    SKLB6

    SKLB8

    Capacity(t/h)

    5

    10

    20

    30

    Spreader power(kw)

    0.75

    0.75

    0.75

    0.75

    Cooling time(min)

    10～15

    Material temperature after cooling

    Room temperature +(3～5)℃

    Total power(kw)

    (0.75+0.75)1.5

    (1.1+0.75)1.85

    (1.5+0.75)2.25

    (1.5+0.75)2.25

    Air intake
    (m3/h)

    9000

    18000

    36000

    54000

    Air pressure

    ≥200mmH20

    Fan

    4-72-11№5A/11kW

    4-72-11№6C/15 kW

    4-72-11№8C/30 kW

    4-72-11№12C/37 kW

    Air-lock

    TGFZ9

    TGFZ16

    TGFZ25

    TGFZ45
