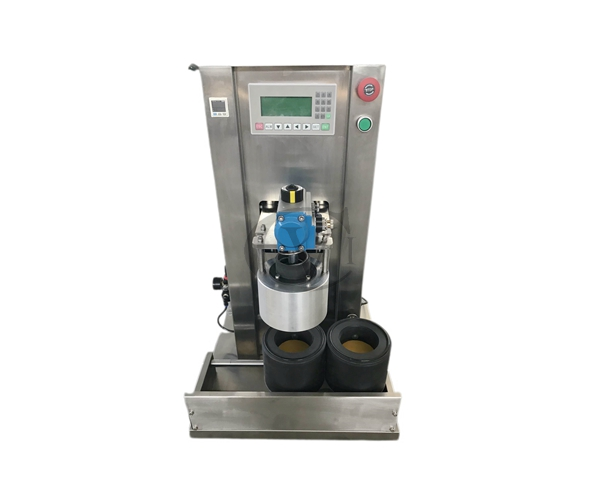

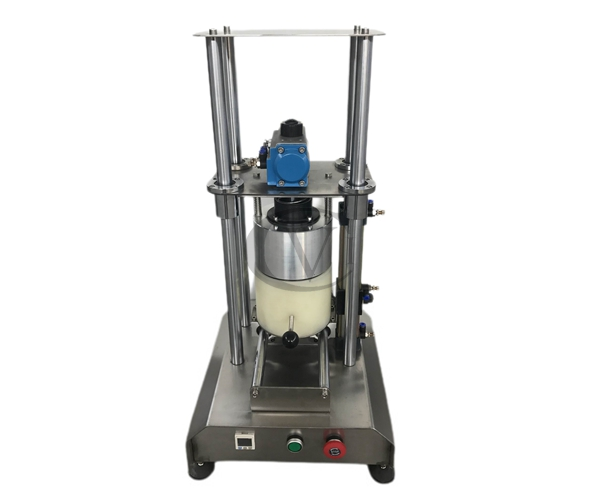

Steel Cap Sealing Machine
Steel Cap Sealing Machine
  • Machine feature:

    1. This sealing machine can be used to seal different bottles, especially the special glass bottles’ cap sealing. By changing different mold can suitable for different glass bottles.

    2. This machine chooses brand electronic components, the functions will be more steady than switch type

    3. This machine can realize the different specs bottle exchange in short time with easy operation

    4. Choose linear motion module and unitary pneumatic actuating torque assembly to improve the screw capping quality and stable working

    5. It can realize no bottle no vacuum, vacuum pressure not upto requirement no capping.

    6. Matched with display screen to realize timely equipment working condition and also the data statistics

    7. Whole machine choose 304 stainless steel which meet health requirement.

Enquiry Now
  • Main data:

    Model

    CS-1

    CS-2

    CS-4

    Bottles mould

    1

    2

    4

    Power

    220W

    500w

    650w

    Capping speed

    5-10bottles/min

    10-15bottles/min

    20-30bottles/h

    Bottle height applicable

    100-150mm

    Capping scope

    Φ30-80mm, steel cap

    Air source

                      0.4-0.6Mpa

    Size

    500x600x600mm

    500x500x950mm

    700x600x1200

    Weight

    68kgs

    90kgs

    150kgs
