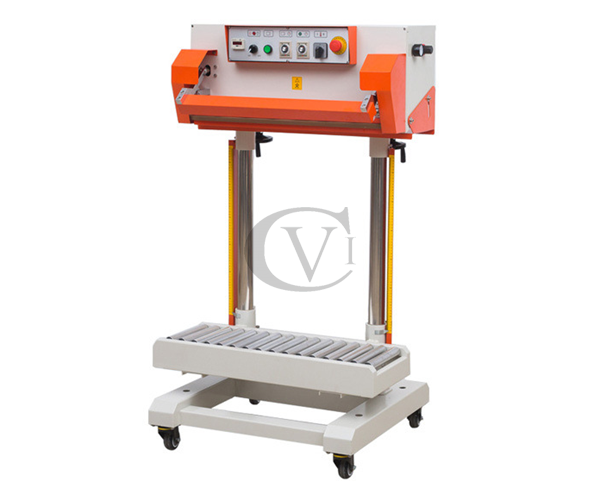

Pneumatic Sealer
Pneumatic Sealer
  • Main feature:

    1.This pneumatic sealing machine can easily seal the normal plastic film with single thick not more than 0.2mm or the complex film, it’s widely used in the industry of chemical and industry, food, feedstuff.

    2.According to different material of the film, the height of the conveyor and the sealing pression can be adjusted to the best condition.

    3. The conveyor table’s structure is very reasonable and is very strong, the loading of the conveyor table will be high to 50 kgs.

    4. If there is special demand, the machine can be made with double heating type (both sides of the bag are heated at the same time), the thick of single film can be more than 0.2mm.

Enquiry Now
  • Main data:


    Model

    QLF-700A pneumatic sealer

    Voltage

    AC110V/60HZ

    Power

    2kw

    Sealing length

    700mm

    Packing speed

    0-10times/min

    Sealing time

    0-3s

    Cooling time

    0-10s

    Work air-pressure

    4-6kg/cm2 (buyer prepare in local)

    Height of the packing bag

    450-750mm

    Thick of film(single level)

    ≤0.2mm

    Loading ability

    50kg

    Distance from sealing position to ground

    1120mm

    Maximum counting number

    99999/bags

    Adjustable angle of press head

    20o

    External size of the machine

    720*560*1340mm

    Weight of the machine

    100kg
