Application:

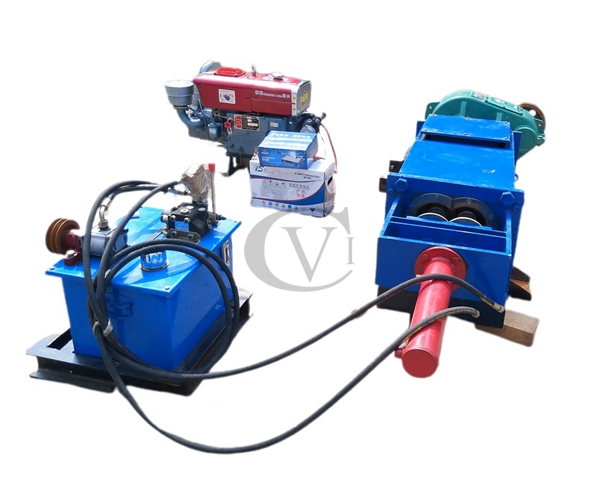

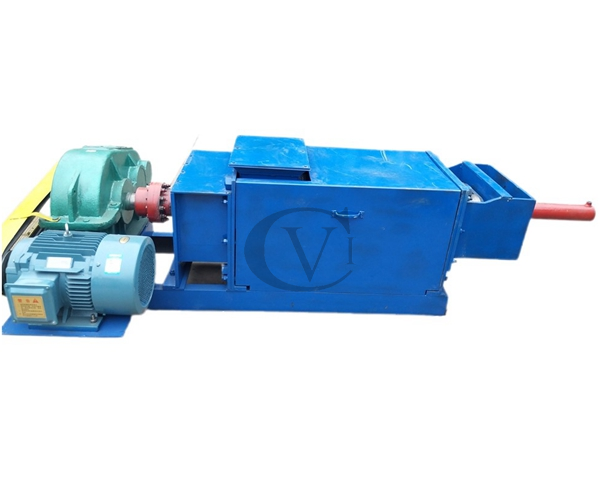

1.This double screw palm fruit oil press machine is with advanced technology to press palm fruit red oil, the pressing chamber pressure can be adjusted by the auto hydraulic oil control system.
2. The final oil is with high oil extraction rate, low residue oil in cake.
Main data:
Model | VIC-2 | VIC-2 |
Capacity | 800-1000kg/h | 800-1000kg/h |
Matching power | 7.5kw motor | 18HP diesel engine |
Power of hydraulic unit | 2.2kw | 2.2kw |
Internal dimensions | 200*900mm | 200*900mm |
Spiral length | 900mm | 900mm |
Main shaft speed | 35-40r/min | 35-40r/min |
Packing size | 2600*1100*700mm | 2600*1100*700mm |
Gross/Net weight | 1880/1780gs | 1920/1820kgs |
