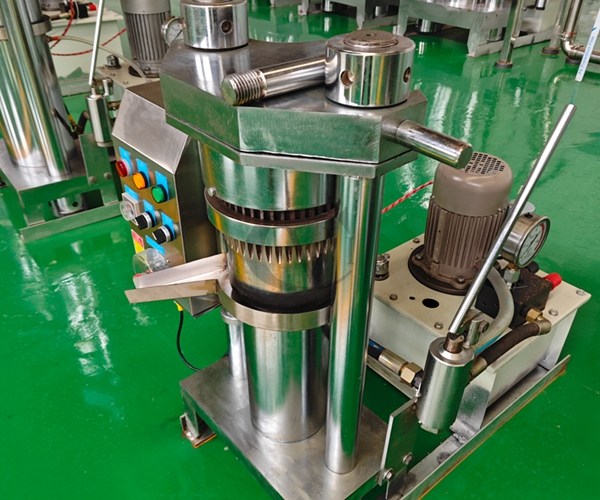

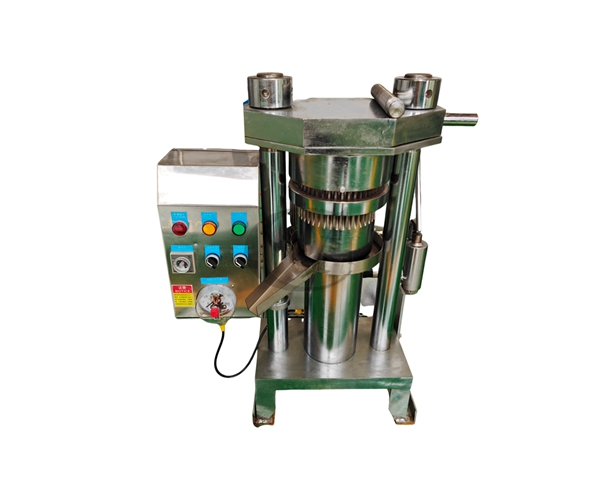

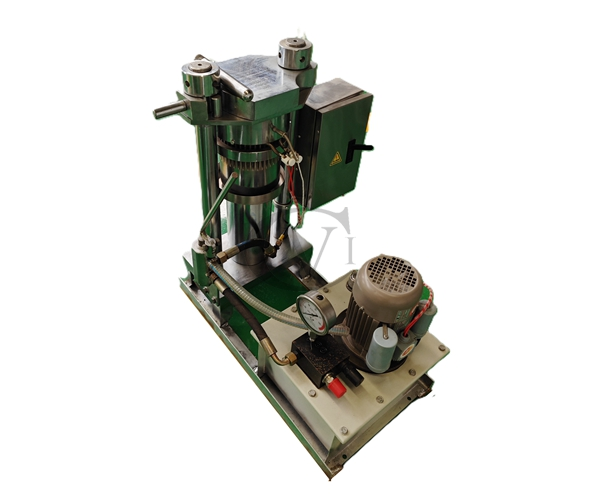

6YZ Hydraulic Oil Press
6YZ Hydraulic Oil Press

  • 1). Maximum pressing pressure up to 60Mpa
    2). Advanced and reliable hydraulic systems power the equipment
    3). The maximum capacity can reach 200KH/H
    4). Both cold press and hot press are acceptable
    5). Continuous intelligent automatic control system is more safe
    6). Low-power motors save energy
    7). You can choose vacuum filtration system to make cleaner oil.

Enquiry Now

  • 1. Application:

    The automatic small coconut sesame hydraulic oil press machine is a new developed oil press machine which is pressing oil from most oil raw materials with super high pressure 60mpa. Small coconut sesame hydraulic oil press machine can be applied for oilseeds such as walnuts, sesame, peanut, coconut, cocoa butter,  and pine nuts, etc.
    With lower power consumption and noise, it can be fed with 8-12kg of oil material every time and completely squeeze in 6-8min. The final oil is good edible oil. You can use the sesame oil to cook directly.
    The hydraulic system is set before it leaves the factory, so you can use it with confidence.  In the case of oil addition, after pressing starts, it will automatically press several times until you press the stop button.

    2. Advantage
    1). Maximum pressing pressure up to 60Mpa
    2). Advanced and reliable hydraulic systems power the equipment
    3). The maximum capacity can reach 200KH/H
    4). Both cold press and hot press are acceptable
    5). Continuous intelligent automatic control system is more safe
    6). Low-power motors save energy
    7). You can choose vacuum filtration system to make cleaner oil.

    3. Main data about the hydraulic oil press

    Model

    6YZ-150

    6YZ-180

    6YZ-230

    6YZ-260

    Process capacity

    8-12kg/h

    16-20kg/h

    32-40kg/h

    44-55kg/h

    Motor power

    0.75kw(220v/

    50hz/single)

    1.5kw(220v/

    50hz/single)

     1.5kw(220v/

    50hz/single)

     1.5kw(220v/

    50hz/single)

    Heating power

    600w

    720w

    850w

    950w

    Heating temperature

    50-70℃

    50-70℃

    50-70℃

    50-70℃

    Nominal pressure(KN)

    1100KN

    1700KN

    2700KN

    3400KN

    Max working pressure

    60MPa

    60MPa

    60MPa

    60MPa

    Overall size

    700X800X

    780mm

    800X900X

    1050mm

    900X1000

    X1400mm

    1050X1100

    X1550mm

    Weight

    240kg

    450kg

    850kg

    1250kg


















    Model

    6YZ-320

    6YZ-360

    6YZ-415

    6YZ-460

    Process capacity

    60-70kg/h

    80-90kg/h

    90-120kg/h

    150-200kg/h

    Motor power

    2.2kw(380V

    50Hz3p)

    2.2kw(380V

    50Hz3p)

    2.2kw(380V

    50Hz3p)

    3kw(380V

    50Hz3p)

    Heating power

    1100w

    1250w

    1500w

    2000w

    Heating temperature

    50-70℃

    50-70℃

    50-70℃

    50-70℃

    Nominal pressure(KN)

    4800KN

    6400KN

    8000KN

    9900KN

    Max working pressure

    60MPa

    60MPa

    60MPa

    60MPa

    Overall size

    1120X1200

    X1650mm

    1200X1200

    X1680mm

    1250X1250

    X1700mm

    1450X1450

    X1950mm

    Weight

    1800kg

    2100kg

    2300kg

    3000kg
