S-10C Mobile mini oil press
S-10C Mobile mini oil press

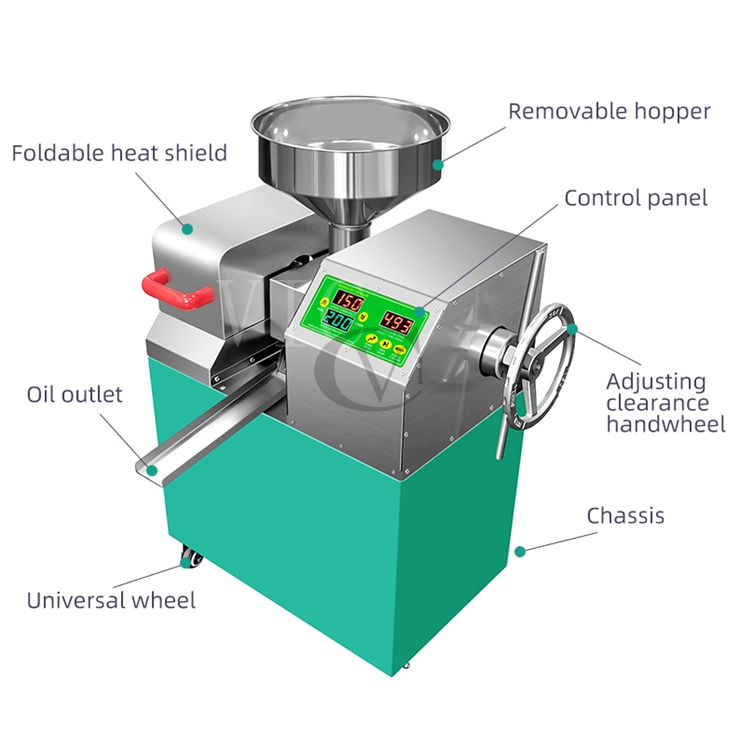

  • 1.Pure copper motor and high quality reducer transfers more torque.

    2.20-280 degree centigrade adjustable heating system.

    3.Adjustable extrusion clearance with easy operating wheel

    4.Industrial heavy-duty universal wheel with brake is easy to move and fix

    5. Comes with storage space for simple tools

    6. Floor-standing body for easy operation, no need to bend over or rest on the table

Enquiry Now
  • Method of operation about the mobile mini oil press machine:
    1.Connect the power, pressing the heating switch to wait around 10minutes(this time, you can fry the raw materials),don’t need to turn off the switch, it is automatic.

    2.If you want to get the higher oil yield, it’s better to fry raw materials firstly.

    3.Clockwise rotation to turn until can’t whirl any more, then do one revolution, you can according to the cake situation to adjust the hand wheel.

    4.After finish pressing, need to press more 3-5 minutes, then press motor stop switch, press heating switch, and then pull the power switch.


    Advantage about the mobile mini oil press machine

    1.Pure copper motor and high quality reducer transfers more torque.

    2.20-280 degree centigrade adjustable heating system.

    3.Adjustable extrusion clearance with easy operating wheel

    4.Industrial heavy-duty universal wheel with brake is easy to move and fix

    5. Comes with storage space for simple tools

    6. Floor-standing body for easy operation, no need to bend over or rest on the table

    Technical data about the mobile mini oil press machine:

    Model

    S10C small oil press

    Capacity

    9-15kg/h

    Motor power

    550w(220v/100-110v)

    Heating power

    630w

    Oil residue in cake

    less than 1%

    Size

    645×295×735mm

    Package Size

    580x345x660mm

    Net weight

    34/40kg
