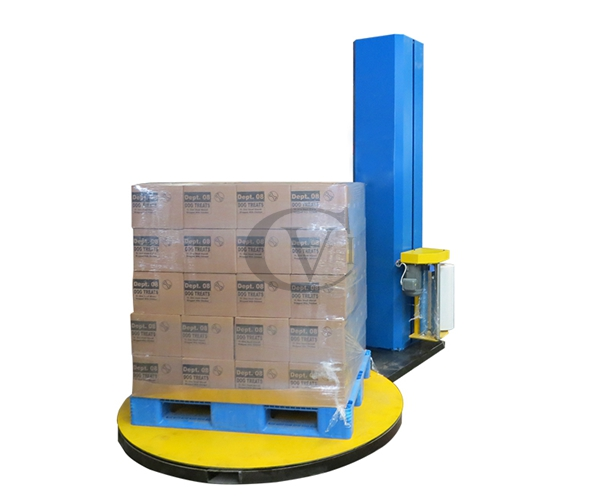

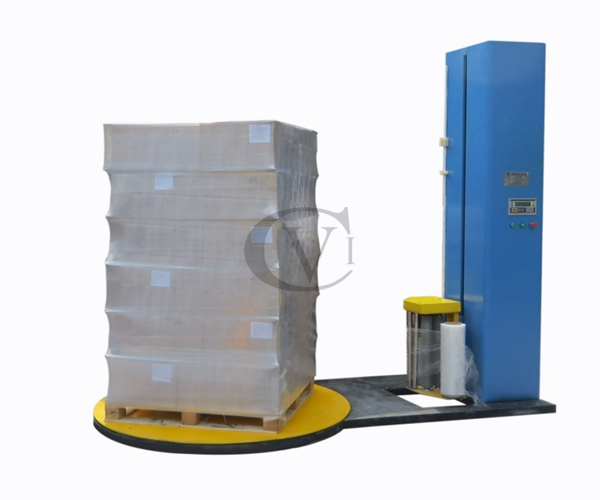

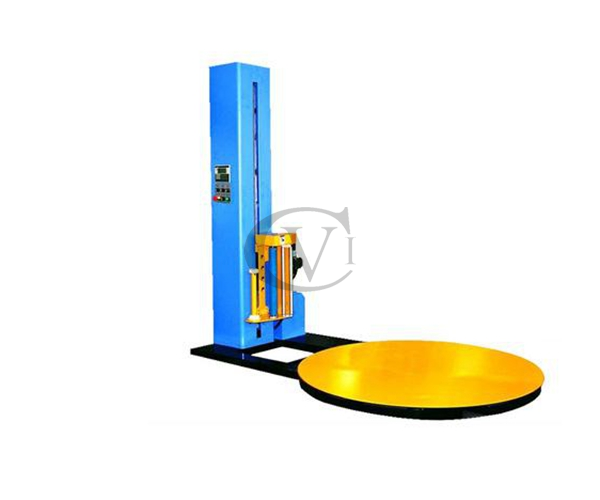

Pallet Wrapping Machine
Pallet Wrapping Machine
  • Introduction:

    Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storage to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified.

    Stretch pallet wrapper is widely used in chemical, electronics, buildings, food, drinks home appliances papermaking foodstuff & drink etc.

    It can pack carton box, wooden box, ton bags, round barrel, cylinder etc.

    Main feature:

    1. Film system: pretension film support, pretension can up to 250%, auto film feeding, alternating current governor system control membrane stress

    2. Up and down stand column: double chain structure, up and down speed frequency conversion adjustable

    3. Control system: PLC programmable control, control box easy and simple to understand.

Enquiry Now
  • Main data:


    Model

    TP-1650

    Turntable diameter

    1650mm

    Wrapping standard

    (500-1200) mm x (500-1200mm)

    Wrapping height

    800-2400mm

    Wrapping capacity

    20-40 pallets/h

    Turntable load max weight

    2000kgs

    Turntable speed

    0-12rpm adjustable

    Power

    0.75+0.4+0.37kw

    (220v/50hz/single phase)

    Stretch film

    500mm min x 20 microns x 1700 m

    Machine Size

    2650x1650x 600mm

    Packing size

    2800x1750x700mm

    Weight

    500kgs
