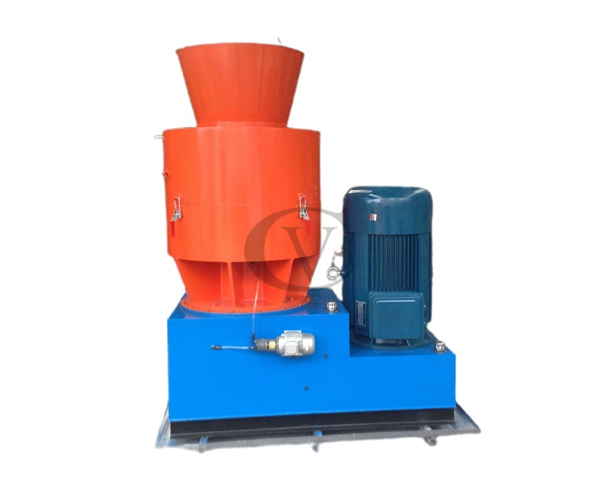

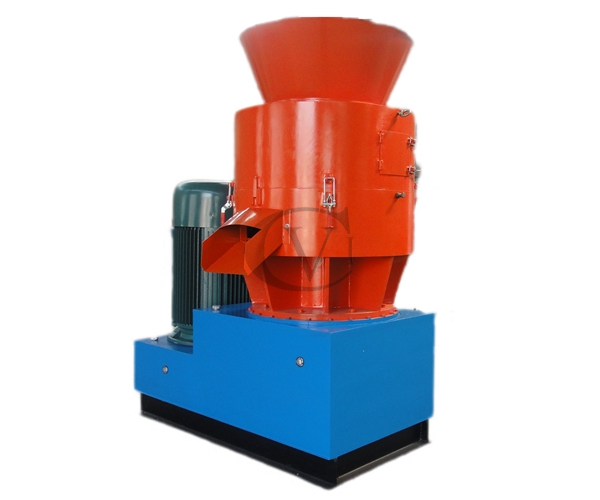

SKJ-800 Flat Mold Pellet Machine
SKJ-800 Flat Mold Pellet Machine
  • Main feature:

    1. The VIC/SKJ series household biofuel pellet machine is mainly suitable for households and small processing plants. The machine is mainly used to do pellet from wood chips, straw, cotton stalks, straw, rice husk, peanut shells, bamboo powder, palm empty fruit bunches, carbon powder, waste paper and other plant wastes.

    2. This pellet machine is compact in structure, easy to operate, stable in operation, and can work continuously.

    3. The compressed granules have the characteristics of high density, high combustion value, low moisture, low ash, etc.

    4. The machine adopts Driven by the reducer, whole machine is made by special high-quality material, and KAF three-level gear box transmit equipment, main parts are used the high-quality alloy steel with durable material, use the Germany vacuum stove hot principle, lifetime is bigger 5-7 times than common pellet mill.

    5. The final size of the pellets is diameter 6,8,10,12mm for the sawdust pellet, and 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, for animal food. According to the requirement of clients, the pellet length can be adjusted.

Enquiry Now
  • Main data:


    Model

    SKJ-550 pellet mill

    SKJ-800 pellet mill

    SKJ-1000 pellet mill

    Power

    45kw(380v/50hz/3p)

    90kw(380v/50hz/3P)

    110kw(380v/50hz/3p)

    Capacity

    800-1000kg/h

    1500-2000kg/h

    2000-3000kg/h

    Size

    2000x1000x1700mm

    2050x1050x2000mm

    2100x1050x2250

    Weight

    1500kgs

    4250kgs

    5000kgs
